Control, distribute, report & signalize
Polyester Distribution Boards
- Rated voltage: max. 2200V AC/DC; Rated current: max. 500A AC/DC
- Certified according to ATEX/IECEx for Gas Zone 1 or 2, as well as Dust Zone 21 and 22
- Operating temperature range Max. -60°C ≤ Ta ≤ +100°C
Datasheet & Operation Manuals
Certficates
QX-P1 = 80 x 75 x 55
QX-P2 = 110 x 75 x 55
QX-P3 = 160 x 75 x 55
QX-P4 = 190 x 75 x 55
QX-P5 = 122 x 120 x 90
QX-P6 = 220 x 120 x 90
QX-P7 = 160 x 160 x 90
QX-P8 = 260 x 160 x 90
QX-P9 = 360 x 160 x 90
QX-P10 = 200 x 250 x 120
QX-P11 = 255 x 250 x 120
QX-P11H = 255 x 250 x 160
QX-P12 = 400 x 250 x 120
QX-P12H = 400 x 250 x 160
QX-P13 = 405 x 400 x 120
QX-P13H = 405 x 400 x 200
QX-P15 = 600 x 250 x 120QX-P15H = 600 x 250 x 160
Stainless Steel Distribution Boards
- Rated voltage: max. 2200V AC/DC; Rated current: max. 500A AC/DC
- Certified according to ATEX/IECEx for Gas Zone 1 or 2, as well as Dust Zone 21 and 22
- Operating temperature range Max. -60°C ≤ Ta ≤ +100°C
Datasheet & Operation Manuals
Certificates
QX-V1I = 150x100x60mm
QX-V2I = 150x150x80mm
QX-V3I = 200x150x60mm
QX-V4I = 200x200x80mm
QX-V5I = 200x200x120mm
QX-V6I = 200x200x160mm
QX-V7I = 300x150x80mm
QX-V8I = 300x200x80mm
QX-V9I = 300x200x120mm
QX-V10I = 300x200x200mm
QX-V11I = 300x300x120mm
QX-V12I = 300x300x160mm
QX-V13I = 300x300x200mm
QX-V14I = 380x380x160mm
QX-V15I = 380x380x200mm
QX-V16I = 400x150x80mm
QX-V17I = 400x200x120mm
QX-V18I = 400x200x160mm
QX-V19I = 400x200x200mm
QX-V20I = 400x300x160mm
QX-V21I = 400x300x200mm
QX-V22I = 500x300x160mm
QX-V23I = 500x300x200mm
QX-V24I = 500x400x160mm
QX-V25I = 500x400x200mm
QX-V26I = 600x200x120mm
QX-V27I = 600x200x160mm
QX-V28I = 600x200x200mm
QX-V29I = 600x400x200mm
QX-V30I = 600x600x200mm
Command and Signaling Devices
The command signaling device series from QUINTEX® is characterized by its compact design. A variety of command signaling devices are available, including indicator lights, push buttons, emergency stop mushroom buttons, key switches, selector switches, ammeters, and more.
- Rated voltage: AC 250V / DC 110V; Rated current: AC 16A / DC 1A
- Terminals up to max. 2*2.5mm² material silver – Optional gold
- Operating temperature range Max. -55°C ≤ Ta ≤ +60°C
Overview
QX-0201- P1+2 Ex Pushbutton / Double-Pushbutton
QX-0201- P3 Ex Emergency Stop Button
QX-0201- P6 /P7 Ex Emergency Stop Button
QX-0201- P4 Ex Mushroom Pushbutton black
QX-0201-K/S Ex Selector switch 2-pole
QX-0201-P/S Ex Selector switch 4-pole
QX-0201-Y0 Ex Emergency Stop / Mushroom Pushbutton with key, red
QX-0201-Y6/Y5 Ex Key Switch
QX-0202- Ex Indication Lamp
QX-0212- Ex Illuminated Pushbutton
QX-0203-DW Ex Potentiometer
QX-0205 Ex Ampere-/Voltmeter
QX-02/ Accessories for Local Control Components
Operation Manuals
Certificates
Polyester Standard Local Control Stations
- Rated voltage: max. 2200V AC/DC; Rated current: max. 1000A AC/DC
- Housings with screw-on covers or hinged doors
- Certified according to ATEX/IECEx for Gas Zone 1 or 2, as well as Dust Zone 21 /22
Stainless Steel Standard On-Site Control
- Rated voltage: max. 2200V AC/DC; Rated current: max. 1000A AC/DC
- Housings with screw-on covers or hinged doors
- Certified according to ATEX/IECEx for Gas Zone 1 or 2, as well as Dust Zone 21/22

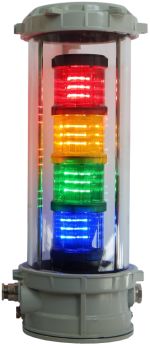

Signal Tower
- Rated voltage: AC110 Volt, AC 230 Volt, or DC 24 Volt
- Ambient temperature -40°C…+55°C
- Available with cable gland or cable entry
VisuEx
- Applications include: plain text displays, visualization, fill levels, warning messages,
- Ambient temperature -20°C…+40°C
- Available with cable gland or cable entry

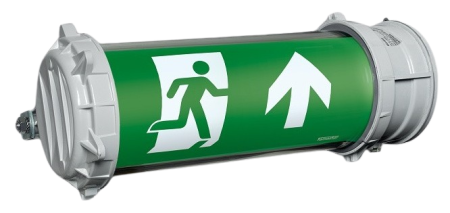

EL-EXIT / EL-WAY
- Applications include: emergency doors, emergency exits, escape and rescue routes
- Ambient temperature: -20°C…+40°C, with battery 0°C…+40°C
- Available with cable gland or line bushing
- Different pictograms available
LED Light Fittings-0865 / 0866
- Luminous flux 1x30W (3396lm) or 2x30W (6836lm)
- Ambient temperature -25°C…+55°C
- Available with battery for emergency lighting duration
